How to repair lite-on pad 101

[xboxer1234]

I f***ed up big time.

http://img580.imageshack.us/f/11062010082.jpg/ (red color means that its broken)

Is there anyway to fix this? I was so close of hacking the drive but then I got some "parse failed" error and after that the pads started to break (when I had to resolder the wires etc.).

btw. Dream, if I'm not all wrong, you live in Finland, right? Well, me too. Could you fix it if I would send it for you ? (of course I would pay)

Ei näytä edes pahalta perus settiä. Kokeile dumppa easy probella vastas 66 sivu 4.
Tota konkkaa joka on irti ei tarvii korjaa. Juotat vaan siihen piirinpuoleiseen pisteeseen 3,3 Volttia.
Pikku hetki niin piirrän sulle korjaus kuvan dumppia varten. Korjauksen jälkeen mittaa resistanssia maan ja 3,3 V väliltä 95 Kohmia - 110 Kohmia on hyvä ja sit dumppailemaan.

Translation... it is not that bad. You don´t need to fix broken capasitor. Just install 3,3V to the mt chip side cap point.
Last measure 3,3V to gnd 95 Kohm - 110 Kohm is good and easy probe it.

MT Damage: http://i48.tinypic.com/s5bbia.jpg

Riittää siis että kun teen kuvan mukaiset kytkökset, ja sitten easy proben avulla dumppaus? Mitään mittaria en omista joten tuota mittausta en oikein tällä hetkellä voi tehdä, mutta jos teen kytkökset oikein niin eihän sitä hajalle voi saada?

translation: So it's enough if I just do the connections like in the picture, and then do the firmware dump with easy probe?

[Dream]

Yes

[xboxer1234]

Yes

Wow, nice. I got it actually working. Jungleflasher detects the drive Well, now it's time to build the easy probe

edit: Okey, got the drive in vendor mode with easy probe but now it's the same problem again "parse failed". What should I do?

edit2: nvm, it works now got the dvdkey etc. Thanks Dream!! (if u want pics, just tell me )

[Dream]

Yes

Wow, nice. I got it actually working. Jungleflasher detects the drive Well, now it's time to build the easy probe

edit: Okey, got the drive in vendor mode with easy probe but now it's the same problem again "parse failed". What should I do?

edit2: nvm, it works now got the dvdkey etc. Thanks Dream!! (if u want pics, just tell me )

This is your stock fix.

[xboxer1234]

Ok, one more problem. I got the drive back togheter but when I open the tray it comes out really quick but then won't close down Any ideas?

edit: and the drive don't read anything, it doesn't even spin the dvds.

[CatchThaBeat]

CatchThaBeat,

Dream, this is great but Im a bit confused. Do I have to make any cuts or do I just connect the colors. And for the light blue, I just connect to the switch? Also, if I get the key successfully, which wires would I leave in place to have it working after its flashed?
Thanks.

[Dream]

CatchThaBeat,

Make Easy probe2 reply66 page4...

Fix like this and measure 3,3 to gnd 95Kohms - 110Kohms is good and dump it.

[CatchThaBeat]

k.

[Dream]

^^ Oh geeze, so that confuses me more now. Do I just disregard your first diagram you illustrated for me and now just do the probe? Do you have aim/skype?

I have No aim/skype... Think    Easy probe is same thing as switch.

[P3T3K]

Dream please help im on my second f***ked liteon fierst 360 i had to week f the pcb so sent it to drive junky he dos not anser any of my emails. So i bourght a nover 360 2 days old and the drive is dead again tryed all points on this page still dead , i realy need the key as this 360 will end up as a paper wait as well. The drive has died i cant get it to read!! at all cleard all points so its not shorting tryed putting 3.3v to pin 101 but its still dead PLEASE PLEASE help me!!

[Dream]

Please please...No No... Post Hires Pictures.

[CatchThaBeat]

CatchThaBeat,

Make Easy probe2 reply66 page4...

Fix like this and measure 3,3 to gnd 95Kohms - 110Kohms is good and dump it.

OK dream I think I get it. Just to clear up a few things: The yellow line in the first picture, is that connected before I probe or is that part of the "fix" step? And for the black line, do I reconnect that in the "fix" step?

I understand the second diagram, as Im reconnecting all pin wholes that are damaged to the 3.3 sources, but curious on the first picture. If you could explain a bit more that would be great, thanks!!

[inturbo]

Hi there,

This one goes to Dream. I saw your fixes and remembered that i have an elite with fried LITE-ON v9.
My goal is to read the firmware. Tried few of your fixes, tried to think something of myself but nothing. All i achieved was that xbox LED stoped blinking when I switched to resistor. So any help is appreciated.

Here are the pics.
http://yfrog.com/7fneedtobefixedj

Direct link
http://img267.imageshack.us/img267/4959/needtobefixed.jpg

EDIT: Removed all the epoxy. My multimeter is out of battery so i cant check resistance and voltage. I did some research, connected 3.3V to all needed points but still no luck. Now the dvd error led doesnt blink at all. The chip is only a bit warm so i guess no short circuits. My guess would be that i need to fix voltage regulator cause i think 1.8V is gone. I have soldering skills, I can connect wires directly to pins. So a diagram of exactly what wire goes where would be perfect. And I prefer switch, not the probe

EDIT 2: OK. So I just did the early MRA method

-Lift pin 101 and 122
-solder a cable to pin 100, pin 101 and one to 3,3V
-use a 2-way switch which either connects 101 to 3,3V or to 100
-put the switch into the position so that it connects 100 to 101
-power drive
-start Dosflash, it will recognise the SPI with Status x72
-if you read it out now, it will just give you a .bin full of FFFFFFFF, but thats OK, this is how we tricked the Flash Controller to think the SPI is empty
-put the switch in the other position (so that 101 is connected to 3,3V)
-now read the flash

Broke pin 101 but got away with that by  soldering really thin wire to the exposed part of the pin. Anyway... Nothing new. When 101 is connected to 100 LED doesnt blink, when 101 is connected to 3.3V it blinks. Neither the JF, nor the DosFlash64 sees my drive. So I did everything I could. Now I need advice from pros.   and it's 4:38 AM in Lithuania and I have electronics engineering exam at 8:00 AM :/

[Dream]

inturbo,

Newer seen lo like that nice work... 3,3V and 5V is missing so i have to measure little before posting the repair picture.
There is no 1,8V because there is no 5V… regulator uses the 5V line so no 1,8V…

You are making things worse so stop it now, i will show you how it is done.


CatchThaBeat,

Install all 4 jumpwires like i have drawn, Black is your pad 122 cut...
Do you really think that your repair/Dump picture is incorrect? Think again.

[inturbo]

Newer seen lo like that nice work...

Yeah. That's my friends. Connected the wrong way. He gave it away. So it would be cool to fix it

[Dream]

Newer seen lo like that nice work...

Yeah. That's my friends. Connected the wrong way. He gave it away. So it would be cool to fix it

Make Easy Probe reply66 page4...

Your Dump pic, Measure resistance 3,3V to GND 95Kohm - 110Kohm is good and 5V to GND @3kohm is good.
Then Dump it...

[CatchThaBeat]

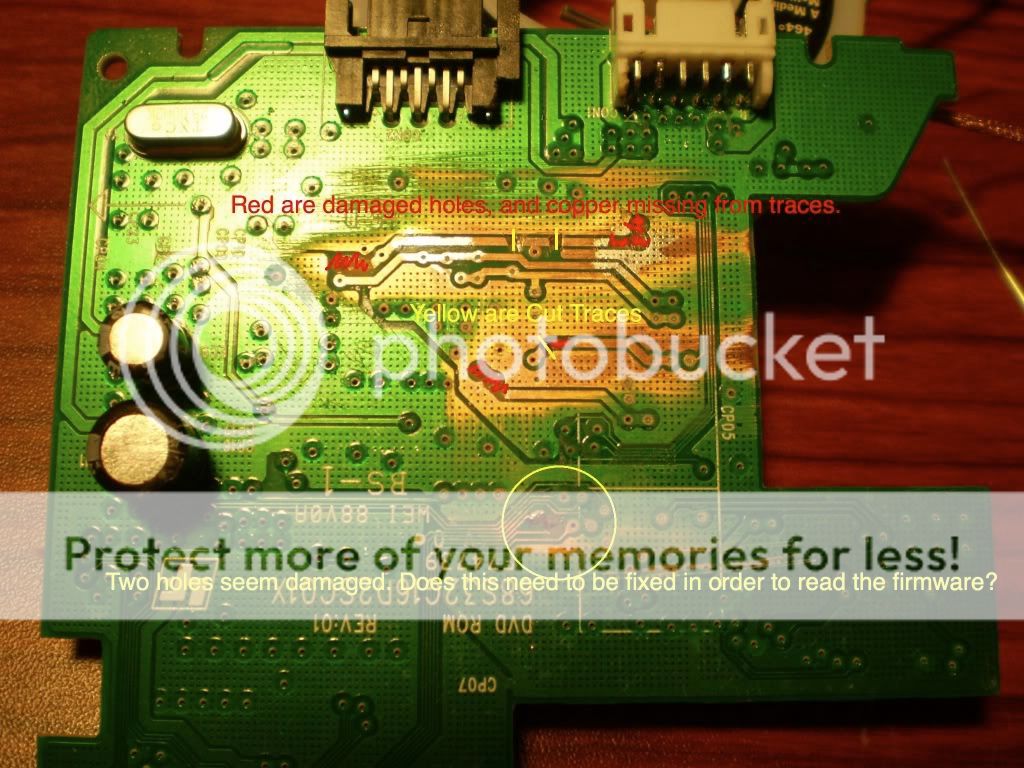

OK Dream. I apologize, but this is what I have after cleaning it up a lot. I tried your wiring method but unsuccessful. Here are updated pics. Please notice the traces damaged below.



I just need to read the drive, if i can fix it that would be great. I tried to read your diagrams on pages before but seem 3.3v is not coming in from pins on the top right so it wont work. Any illustration would be greatly appreciated. Thank you dream!

[CatchThaBeat]

.

[Dream]

CatchThaBeat,

I don’t won´t to see this end up to recycle bin. Send the board to me. I will fix it for you.

[CatchThaBeat]

CatchThaBeat,

I don’t won´t to see this end up to recycle bin. Send the board to me. I will fix it for you.

Dream please, I know you could do it but Id like to myself. What ALL must be connected to just pull the fw?
