restore hdd game install after ban with nand backup?

[woodlaz]

Gday Boby2pc,
                     I have sent you a PM with my nand link.

Cheers
Woodlaz

EDIT: I was banned on the 17th Nov, not the 5th Nov.. I was online up until the 11th Nov.

[mosses]

hi

i tried to dump thenand using nandpro20 every time it gives an error 250: reading block 53
i have dumped it more than 10 times remove the diode and resisters its not getting away
same error again and again all else goes fine

these are my logs generated from findsecdata need advise wat to do next

here is link to my nand
*


findsecdata v0.4 2009-11-26 by boby2pc
Controller version 1
Last filetable change: 0x49
ECC change: 0x49 Filetbl: 0x0129 Secdata: 0x0356 Timestamp: 33766001 2004-04-13
ECC change: 0x43 Filetbl: 0x0359 Secdata: 0x0356 Timestamp: 33766001 2004-04-13
ECC change: 0x41 Filetbl: 0x0355 Secdata: 0x0140 Timestamp: 3B744495 2009-11-19
ECC change: 0x3D Filetbl: 0x013F Secdata: 0x036E Timestamp: 3B1D93A3 2009-08-25

Checking secdata:
036E containts not 0 values above offset 1024

Searching for recommended

Extracting secdata:
secdata0356.bin
secdata0356.bin
secdata0140.bin

Extracting filetables:
filetable0129.bin
filetable0359.bin
filetable0355.bin

Creating patched filetables:
Patchedfiletable0129By0129.bin
Patchedfiletable0129By0359.bin

Use:

Old secdata.bin not found. Console might be not banned, already patched or secda
ta.bin overwritten.

Press ENTER

thanks in advance

[boby2pc]

Last filetable change: 0x49
ECC change: 0x49 Filetbl: 0x0129 Secdata: 0x0356 Timestamp: 33766001 2004-04-13
ECC change: 0x43 Filetbl: 0x0359 Secdata: 0x0356 Timestamp: 33766001 2004-04-13
ECC change: 0x41 Filetbl: 0x0355 Secdata: 0x0140 Timestamp: 3B744495 2009-11-19
ECC change: 0x3D Filetbl: 0x013F Secdata: 0x036E Timestamp: 3B1D93A3 2009-08-25

Checking secdata:
036E containts not 0 values above offset 1024

Old secdata.bin not found. Console might be not banned, already patched or secda
ta.bin overwritten.

Your old sec.data.bin is overwritten. REMOVE LINK TO YOUR NAND FROM POST !!!

[Arakon]

You simply got a bad block there, that's normal.

[darknight]

boby2pc can u check my pm  please? Thanks

[mosses]

Last filetable change: 0x49
ECC change: 0x49 Filetbl: 0x0129 Secdata: 0x0356 Timestamp: 33766001 2004-04-13
ECC change: 0x43 Filetbl: 0x0359 Secdata: 0x0356 Timestamp: 33766001 2004-04-13
ECC change: 0x41 Filetbl: 0x0355 Secdata: 0x0140 Timestamp: 3B744495 2009-11-19
ECC change: 0x3D Filetbl: 0x013F Secdata: 0x036E Timestamp: 3B1D93A3 2009-08-25

Checking secdata:
036E containts not 0 values above offset 1024

Old secdata.bin not found. Console might be not banned, already patched or secda
ta.bin overwritten.

Your old sec.data.bin is overwritten. REMOVE LINK TO YOUR NAND FROM POST !!!

so is there any way arnd for me to uncripple it or I just consider myself screwed....

[boby2pc]

so is there any way arnd for me to uncripple it or I just consider myself screwed....

not possible to restore HDD functionality

[l3xx]

hi all well, I'm having trouble getting my HD back to work, when I run findsecdat 0.61 says that he did not find the old secdata. I did an update after it was banned. Will I have any solution?

Checked Your NAND and there is only valid secdata.bin which is propobly the banned one, so older one it not recoverable.

Please REMOVE LINK to Your nand from post ! It's not permitted here.

ok, thank you and sorry for the link (already removed).

[Infestus]

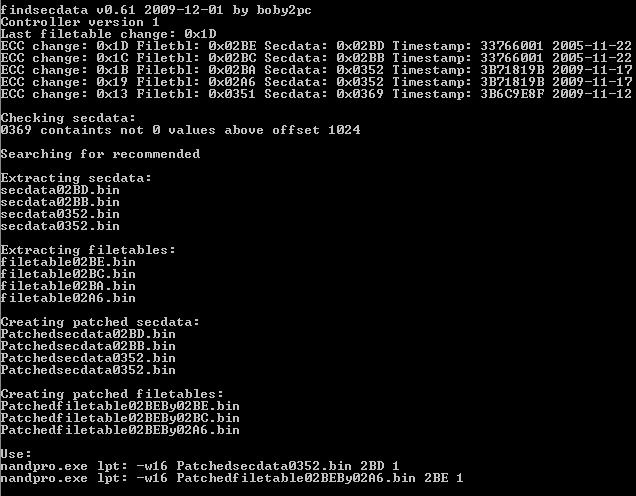

Can somebody point me in the right direction? Does this mean I have a chance of restoring my ability to install games to HDD? I am a newbie I manage to get a friend do the LPT cable for me and this is the result I get with findsecdata. What I don’t understand is the commands when it tells me to use:

nandpro.exe lpt: -w16 Patchedsecdata0352.bin 2BD 1 DO I press ENTER here or I have to wright the other command?

Nandpro.exe lpt: -w16 Patchedfiletable02BEBy02A6.bin 2BE 1

I am sorry if this is a stupid question, I just want to learn the correct way before doing anything.

Thanks in advance.

[Arakon]

you press enter in between.

[boby2pc]

Can somebody point me in the right direction? Does this mean I have a chance of restoring my ability to install games to HDD? I am a newbie I manage to get a friend do the LPT cable for me and this is the result I get with findsecdata. What I don’t understand is the commands when it tells me to use:

nandpro.exe lpt: -w16 Patchedsecdata0352.bin 2BD 1 DO I press ENTER here or I have to wright the other command?

Nandpro.exe lpt: -w16 Patchedfiletable02BEBy02A6.bin 2BE 1

I am sorry if this is a stupid question, I just want to learn the correct way before doing anything.

Thanks in advance.

Sorry, it won't work, because Your real unbanned secdata.bin at block 369 is overwritten.
You could send patch to reverse to secdata.bin at 352 but it's banned one.

[Infestus]

I see  , thank you very much boby2pc for your time and effort, I appreciated very much. Thank you Arakon.

[boby2pc]

released new version of findsecdata v0.62 with small bug fixes and little more functionality

http://www.xboxhacker.net/index.php?topic=12759.msg87614#msg87614

[dusan75]

Hi guys!

I have a big problem with jasper 256mb. My story:

- readed 600 blocks from AE0 with nandpro2.0a
- run findsecdata 0.61
- write back patched files
- turn on and got 1 red blinking led
- write back the original dump from AE0, and turned on.
Now, fans are running in full speed and not booting up.

What is the problem? I think some cheksums are corrupted. Is there anyway to fix it?

[Arakon]

that is why you are supposed to make multiple dumps to be sure that it's not messed up.

[boby2pc]

Hi guys!

I have a big problem with jasper 256mb. My story:

- readed 600 blocks from AE0 with nandpro2.0a
- run findsecdata 0.61
- write back patched files
- turn on and got 1 red blinking led
- write back the original dump from AE0, and turned on.
Now, fans are running in full speed and not booting up.

What is the problem? I think some cheksums are corrupted. Is there anyway to fix it?

it's not possible to fix if You did it that way.
- You shoud use nandpro 2.0b
- Do 2 identical dumps of that block
- Don't write back full (600 blocks) to nand - because of trasmission errors when write back sometimes happen
- Do additional backup of 2 modified blocks.

Findsecdata won't help You if You had bad dump.

[dusan75]

Dumped twice and compared, so I think, the dump is ok. But it dumped with 2.0a, because 2.0b isn't handle the usb spi programmer (with pic 18f255). It's impossible to rebuild the image!?

[boby2pc]

Dumped twice and compared, so I think, the dump is ok. But it dumped with 2.0a, because 2.0b isn't handle the usb spi programmer (with pic 18f255). It's impossible to rebuild the image!?

Send me Your dump (upload dump to fileserwer and send me link PM). I will do some validation checking on that dump to see what ver.2.0a dumped.
Next could You check what ver.2.0a really wrote. To do check use ver.2.0b to read 600 blocks and compare them to dump.

[modguru]

hello i have make 6 dump from a nand 512 jasper  and i have  run the boby program (by the way many thanks boby ) and the installation on my hard drive it is not coming back ..
 i have make something wrong ?



http://img262.imageshack.us/img262/7272/nand.jpg

[boby2pc]

hello i have make 6 dump from a nand 512 jasper  and i have  run the boby program (by the way many thanks boby ) and the installation on my hard drive it is not coming back ..
 i have make something wrong ?



http://img262.imageshack.us/img262/7272/nand.jpg

full log plis and read the readme.txt file of version 0.62
